DTC123J - NPN DIGITAL TRANSISTOR

Product Overview

UTC

📥 Download Datasheet

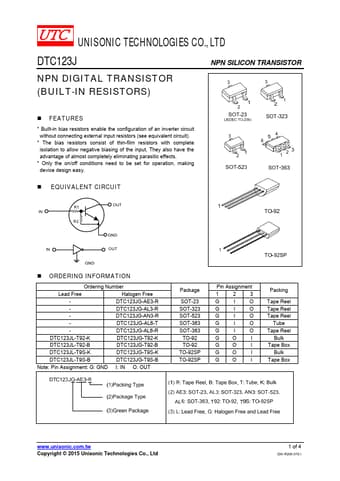

DTC123J NPN DIGITAL TRANSISTOR by UTC - Datasheet Preview — Datasheet preview – DTC123J

Datasheet Details

Part number	DTC123J
Manufacturer	UTC
File Size	227.18 KB
Description	NPN DIGITAL TRANSISTOR
Datasheet	DTC123J Datasheet
Additional preview pages of the DTC123J datasheet.

Product details

Features

S.
Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit).
The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing of the input. They also have the advantage of almost completely eliminating parasitic effects.
Only the on/off conditions need to be set for operation, making device design easy.
