L1119 Datasheet - UTC

L1119 LOW DROPOUT REGULATORS

The UTC L1119 is a fast ultra low-dropout linear regulator that developed in CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the device to operate under extremely low dropout conditions. The UTC L1119 allows to operate from .

L1119 Features

* Low ground current

* Load regulation of 0.04%

* Output current of 1.5A DC is guaranteed

* Accurate output voltage.(± 1.5%)

* Extremely low output capacitor requirements

* Over temperature/ Over current protection

* Pb-free plating product number: L1119L-xx www.DataShee

L1119 Datasheet (191.87 KB)

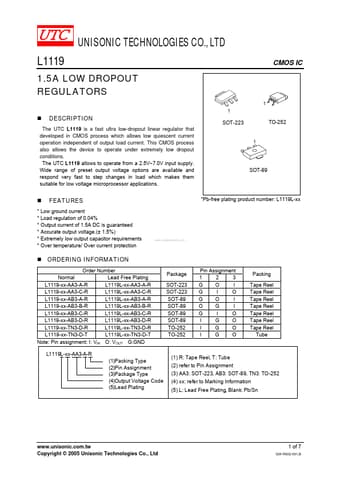

L1119 Datasheet Preview — Preview of L1119 PDF

Datasheet Details

Part number:

L1119

Manufacturer:

UTC

File Size:

191.87 KB

Description:

Low dropout regulators.
