L11831A Datasheet - UTC

ULTRA LOW DROPOUT REGULATOR

L11831A Features

* VDD voltage 5V

* Maximum 3A low-dropout voltage regulator

* High accuracy output voltage ±1.5%

* When disable VO pull low resistance

* Internal over current and over temperature protection 1 CMOS IC HSOP-8 DFN3030-10

* ORDERING INFORMATION Ordering Number Lead Free Ha

L11831A General Description

The UTC L11831A/B/C is a positive voltage regulator with high performance. It has low dropout voltage and low input voltage, besides its output voltage can be fixed at 1V,1.05V, 1.2V, 1.5V, 1.8V, or 2.5V depending on internal feedback resistors or ADJ (not connected to the ground) with external feed.

L11831A Datasheet (249.72 KB)

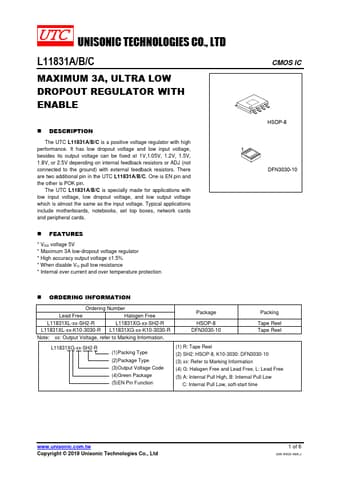

L11831A Datasheet Preview — Preview of L11831A PDF

Datasheet Details

Part number:

L11831A

Manufacturer:

UTC

File Size:

249.72 KB

Description:

Ultra low dropout regulator.
