M4034 Datasheet, Switch, UTC

M4034 Features

  • Switch
  • Operating Voltage: +4.75V ~ +13V
  • 3 Input-1 Output
  • Muting Function available
  • Wide Operating Supply voltage Range: 4.75V ~ 13V
  • Cross-talk

PDF File Details

Part number:

M4034

Manufacturer:

UTC

File Size:

272.91kb

Download:

📄 Datasheet

Description:

3-input video switch. The UTC M4034 is 3-input video switch selecting one of three input video or audio signals. Its operating supply voltage range is 5 ~

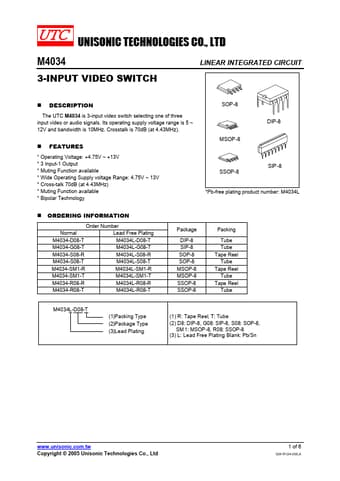

Datasheet Preview: M4034 📥 Download PDF (272.91kb)
Page 2 of M4034 Page 3 of M4034
