MPSA44B - HIGH VOLTAGE TRANSISTOR

MPSA44B Description

UTC MPSA 44B NPN EPITAXIAL SILICON TRANSISTOR HIGH VOLTAGE TRANSISTOR .

MPSA44B Features

* Collector-Emitter voltage: VCEO=400V
* Collector current up to 300mA
* Complement to MPSA94
* Collector Dissipation: Pc(max)=625mW 1 TO-92 1: BASE 2: EMITTER 3: COLLECTOR
* Pb-free plating product number: MPSA44BL ABSOLUTE MAXIMUM RATINGS ( Operating temperature range applies unl

📥 Download Datasheet

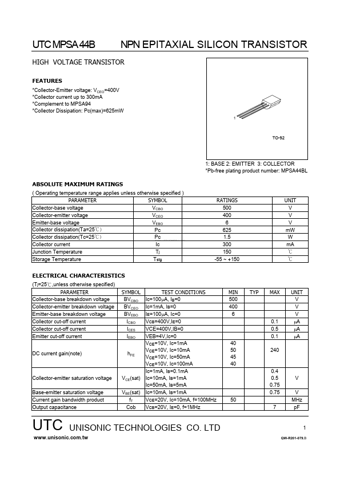

Preview of MPSA44B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPSA44B
Manufacturer
UTC
File Size
161.53 KB
Datasheet
MPSA44B_UTC.pdf
Description
HIGH VOLTAGE TRANSISTOR
