MPSA113 - DARLINGTON TRANSISTOR

Datasheet Summary

Description

The UTC MPSA113 is a Darlington transistor.

Features

  • Collector-Emitter Voltage: VCES = 30V.
  • Collector Dissipation: Pc (mas) = 625 mW SOT-89 1:.

📥 Download Datasheet

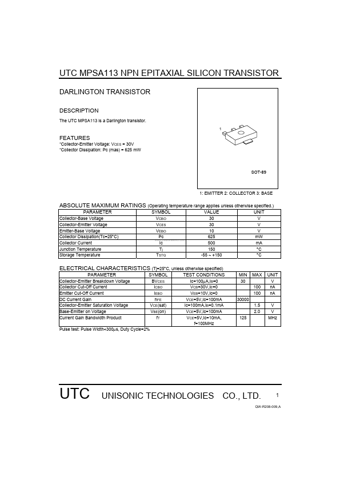

Datasheet preview – MPSA113
