MPSA12P - NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTOR

📥 Download Datasheet

Datasheet preview – MPSA12P

Datasheet Details

Part number MPSA12P
Manufacturer Zetex Semiconductors
File Size 62.93 KB
Description NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTOR
Datasheet download datasheet MPSA12P Datasheet
Additional preview pages of the MPSA12P datasheet.

📁 Similar Datasheet

  • MPSA12 - DARLINGTON TRANSISTOR (Motorola)
  • MPSA12 - NPN Darlington Transistor (Fairchild)
  • MPSA12 - NPN Transistor (ON Semiconductor)
  • MPSA12 - Silicon NPN Transistor (NTE)
  • MPSA12 - SILICON NPN DARLINGTON TRANSISTORS (Central Semiconductor)
  • MPSA10 - NPN Transistor (Samsung)
  • MPSA113 - DARLINGTON TRANSISTOR (UTC)
  • MPSA13 - Darlington Transistors (Motorola)
  • MPSA13 - NPN Darlington Transistor (Fairchild Semiconductor)
  • MPSA13 - EPITAXIAL PLANAR NPN TRANSISTOR (KEC)
Other Datasheets by Zetex Semiconductors
  • MPSA06 - NPN SILICON PLANAR MEDIUM POWER TRANSISTOR
  • MPSA56 - PNP SILICON PLANAR MEDIUM POWER TRANSISTOR
  • MPS5179 - NPN Transistor
  • MPSH10P - NPN SILICON PLANAR RF TRANSISTOR

Full PDF Text Transcription

Click to expand full text

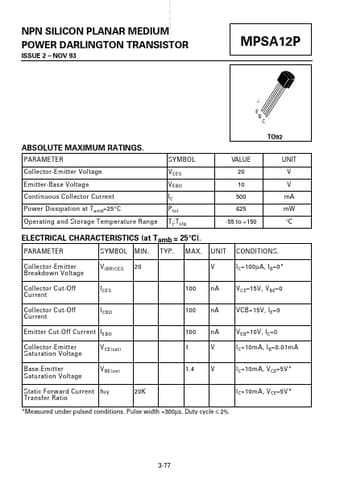

NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTOR ISSUE 2 – NOV 93 www.DataSheet4U.com MPSA12P E B C TO92 ABSOLUTE MAXIMUM RATINGS. PARAMETER Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation at T amb=25°C Operating and Storage Temperature Range SYMBOL V CES V EBO IC P tot T j:T stg VALUE 20 10 500 625 -55 to +150 UNIT V V mA mW °C ELECTRICAL CHARACTERISTICS (at Tamb = 25°C). PARAMETER Collector-Emitter Breakdown Voltage Collector Cut-Off Current Collector Cut-Off Current SYMBOL V (BR)CES MIN. 20 TYP. MAX. UNIT V CONDITIONS.
