MPSA12 - DARLINGTON TRANSISTOR

📥 Download Datasheet

Datasheet preview – MPSA12

Datasheet Details

Part number MPSA12
Manufacturer Motorola
File Size 26.92 KB
Description DARLINGTON TRANSISTOR
Datasheet download datasheet MPSA12 Datasheet
Additional preview pages of the MPSA12 datasheet.

📁 Similar Datasheet

  • MPSA12 - NPN Darlington Transistor (Fairchild)
  • MPSA12 - NPN Transistor (ON Semiconductor)
  • MPSA12 - Silicon NPN Transistor (NTE)
  • MPSA12 - SILICON NPN DARLINGTON TRANSISTORS (Central Semiconductor)
  • MPSA12P - NPN SILICON PLANAR MEDIUM POWER DARLINGTON TRANSISTOR (Zetex Semiconductors)
  • MPSA10 - NPN Transistor (Samsung)
  • MPSA113 - DARLINGTON TRANSISTOR (UTC)
  • MPSA13 - NPN Darlington Transistor (Fairchild Semiconductor)
  • MPSA13 - EPITAXIAL PLANAR NPN TRANSISTOR (KEC)
  • MPSA13 - NPN Silicon Darlington Transistor (MCC)
Other Datasheets by Motorola
  • MPSA13 - Darlington Transistors
  • MPSA14 - Darlington Transistors
  • MPSA16 - (MPSA17) Chopper Transistors
  • MPSA17 - NPN Chopper Transistor
  • MPSA18 - Low Noise Transistor
  • MPSA05 - Amplifier Transistors
  • MPSA06 - Amplifier Transistors
  • MPSA20 - Amplifier Transistor(NPN Silicon)

Full PDF Text Transcription

Click to expand full text

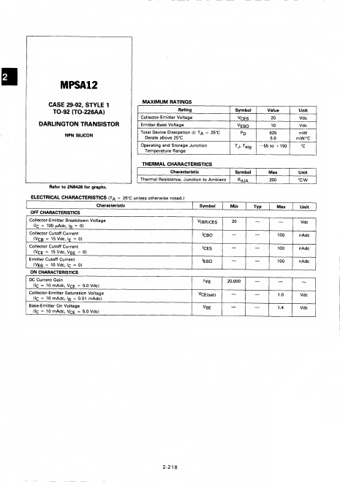

MPSA12 CASE 29-02, STYLE 1 TO-92 (TO-226AA) DARLINGTON TRANSISTOR NPN SILICON MAXIMUM RATINGS Rating Collector-Emitter Voltage Emitter-Base Voltage Total Device Dissipation (S T"a = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol VCES v EBO PD TJ- Tstg Value 20 10 625 5.0 -55 to +150 Unit Vdc Vdc mW mW/°C °C Refer to 2N6426 for graphs.
