MPSA26, MPSA25 Datasheet - Motorola

MPSA26 DARLINGTON TRANSISTOR

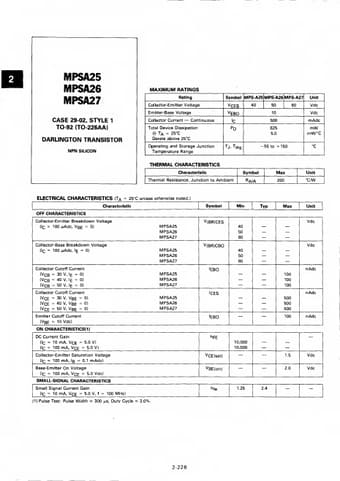

MPSA25 MPSA26 MPSA27 CASE 29-02, STYLE 1 TO-92 (TO-226AA) DARLINGTON TRANSISTOR NPN SILICON MAXIMUM RATINGS Rating Collector-Emitter Voltage Emitter-Base Voltage Collector Current Continuous Total Device Dissipation @ Ta = 25°C Derate above 25°C Operating and Storage Junction Temperature Range Symbol MPS-A25 MPS-A26 MPS-A27 Unit VCE$ 40 50 60 Vdc vEBO 10 Vdc 'C 500 mAdc PD 625 mW 5.0 mW/°C Tj. TSt g -55 to +150 °C THERMAL CHARACTERISTICS Characteristic Thermal Resistance, .

MPSA25-Motorola.pdf

MPSA26 Datasheet Preview — This datasheet PDF includes multiple part numbers: MPSA26, MPSA25. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MPSA26, MPSA25

Manufacturer:

Motorola

File Size:

75.06 KB

Description:

Darlington transistor.

Note:

This datasheet PDF includes multiple part numbers: MPSA26, MPSA25.
Please refer to the document for exact specifications by model.
