MPSA20 - NPN SILICON TRANSISTORS

MPSA20 Description

MPSA20 NPN MPSA70 PNP COMPLEMENTARY SILICON TRANSISTORS w w w.c e n t r a l s e m i .c o m .
The CENTRAL SEMICONDUCTOR MPSA20 and MPSA70 are complementary silicon transistors designed for general purpose amplifier and switching applications.

MPSA20 Applications

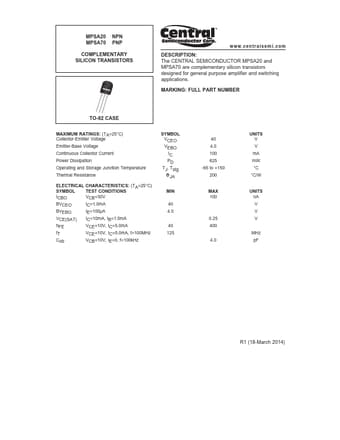

* MARKING: FULL PART NUMBER TO-92 CASE MAXIMUM RATINGS: (TA=25°C) Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance ELECTRICAL CHARACTERISTICS: (TA=25°C) SYMBOL TEST CONDITIONS ICBO VCB=30V
