Datasheet Details
| Part number | MPSA13 |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 339.80 KB |
| Description | SILICON NPN DARLINGTON TRANSISTORS |
| Datasheet |
 MPSA13 Datasheet
|
|
|
Download the MPSA13 datasheet PDF. This datasheet also includes the MPSA12 variant, as both parts are published together in a single manufacturer document.
| Part number | MPSA13 |
|---|---|
| Manufacturer | Central Semiconductor |
| File Size | 339.80 KB |
| Description | SILICON NPN DARLINGTON TRANSISTORS |
| Datasheet |
MPSA13 Datasheet
|
|
|
|

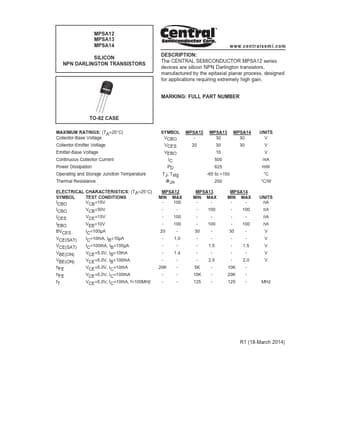

: The CENTRAL SEMICONDUCTOR MPSA12 series devices are silicon NPN Darlington transistors, manufactured by the epitaxial planar process, designed for applications requiring extremely high gain.
MARKING: FULL PART NUMBER TO-92 CASE MAXIMUM RATINGS: (TA=25°C) Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation Operating and Storage Junction Temperature Thermal Resistance SYMBOL VCBO VCES VEBO IC PD TJ, Tstg JA MPSA12 MPSA13 MPSA14 - 30 30 20 30 30 10 500 625 -65 to +150 200 ELECTRICAL CHARACTERISTICS: (TA=25°C) SYMBOL TEST CONDITIONS ICBO VCB=15V ICBO VCB=30V ICES VCE=15V IEBO VEB=10V BVCES IC=100μA VCE(SAT) IC=10mA, IB=10μA VCE(SAT) IC=100mA, IB=100μA VBE(ON) VCE=5.0V, IB=10mA VBE(ON) VCE=5.0V, IB=100mA hFE VCE=5.0V, IC=10mA hFE VCE=5.0V, IC=100mA fT VCE=5.0V, IC=10mA, f=100MHz MPSA12 MIN MAX - 100 -- 100 - 100 20 - 1.0 -- 1.4 -20K --- MPSA13 MIN MAX -- 100 -- 100 30 -- 1.5 -- 2.0 5K 10K 125 - MPSA14 MIN MAX -- 100 -- 100 30 -- 1.5 -- 2.0 10K 20K 125 - UNITS V V V mA mW °C °C/W UNITS nA nA nA nA V V V V V MHz R1 (18-March 2014) MPSA12 MPSA13 MPSA14 SILICON NPN DARLINGTON TRANSISTORS TO-92 CASE - MECHANICAL OUTLINE LEAD CODE: 1) Emitter 2) Base 3) Collector MARKING: FULL PART NUMBER w w w.
c e n t r a l s e m i .
MPSA12 MPSA13 MPSA14 SILICON NPN DARLINGTON TRANSISTORS w w w.
c e n t r a l s e m i .
