MPSA27 EPITAXIAL PLANAR NPN TRANSISTOR

MPSA27 Description

SEMICONDUCTOR TECHNICAL DATA DARLINGTON TRANSISTOR .

MPSA27 Features

* á´ŚComplementary to MPSA77. MAXIMUM RATINGS (Ta=25á´±) CHARACTERISTIC SYMBOL Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature VCBO VCES VEBO IC PC Tj Storage Temperature Range Tstg RATING 60 60 10 500 625 150

📥 Download Datasheet

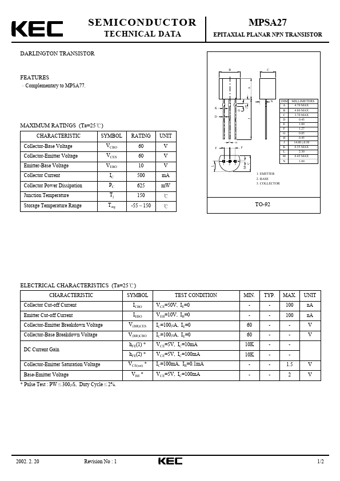

Preview of MPSA27 PDF
datasheet Preview Page 2

Datasheet Details

Part number
MPSA27
Manufacturer
Korea Electronics
File Size
64.16 KB
Datasheet
MPSA27_KoreaElectronics.pdf
Description
EPITAXIAL PLANAR NPN TRANSISTOR
