MPSA28 - NPN Darlington Transistor

MPSA28 Description

MPSA28 / MMBTA28 / PZTA28 Discrete POWER & Signal Technologies MPSA28 MMBTA28 C PZTA28 C E C B E C B TO-92 E SOT-23 Mark: 3SS B SOT-223 NPN.

MPSA28 Applications

* requiring extremely high current gain at collector currents to 500 mA. Sourced from Process 03. Absolute Maximum Ratings
* Symbol VCES VCBO VEBO IC TJ, Tstg Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous TA = 25°C unless otherwise noted Par

📥 Download Datasheet

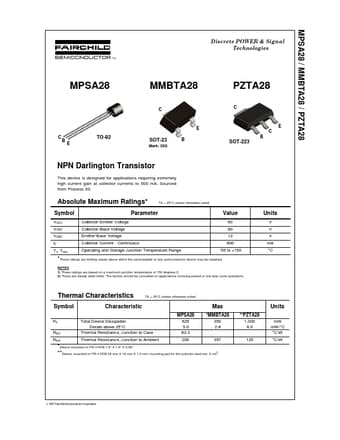

Preview of MPSA28 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MPSA28
Manufacturer
Fairchild Semiconductor
File Size
122.90 KB
Datasheet
MPSA28_FairchildSemiconductor.pdf
Description
NPN Darlington Transistor
