MPSA14, MPSA13 Datasheet - Motorola

MPSA14 - Darlington Transistors

MOTOROLA SEMICONDUCTOR TECHNICAL DATA Darlington Transistors NPN Silicon COLLECTOR 3 BASE 2 Order this document by MPSA13/D MPSA13 MPSA14 Motorola Preferred Device EMITTER 1 MAXIMUM RATINGS Rating Symbol Value Unit Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Continuous Total Device Dissipation @ TA = 25°C Derate above 25°C VCES VCBO VEBO IC PD 30 Vdc 30 Vdc 10 Vdc 500 mAdc 625 mW 5.0 mW/°C T

MPSA13_Motorola.pdf

This datasheet PDF includes multiple part numbers: MPSA14, MPSA13. Please refer to the document for exact specifications by model.

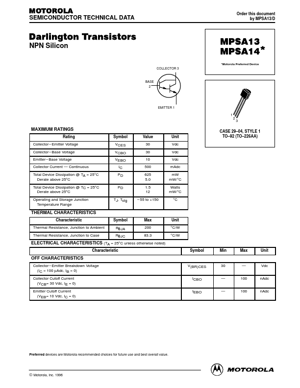

MPSA14 Datasheet Preview Page 2 MPSA14 Datasheet Preview Page 3

Datasheet Details

Part number:

MPSA14, MPSA13

Manufacturer:

Motorola

File Size:

225.92 KB

Description:

Darlington transistors.

Note:

This datasheet PDF includes multiple part numbers: MPSA14, MPSA13.
Please refer to the document for exact specifications by model.
