P1690 - 150KHZ 65V BUCK DC-DC CONVERTER

Datasheet Summary

Description

The UTC P1690 is a PWM buck (step-down) DC/DC converter, fixed frequency of 150KHz, capable of driving a 0.4A load with high efficiency, low ripple and excellent line and load regulation.

The P1690 built kinds of protect circuit inside.

Such as OTP SCP and so on.

Features

  • S.
  • Wide 5V~ 65V Operation Voltage.
  • Output Adjustable from 1.25V~25V.
  • High efficiency up to 85%.
  • Maximum Duty Cycle 100%.
  • Fixed 150KHz Switching Frequency.
  • Built in OTP.
  • Built in SCP.
  • Built in OCP.

📥 Download Datasheet

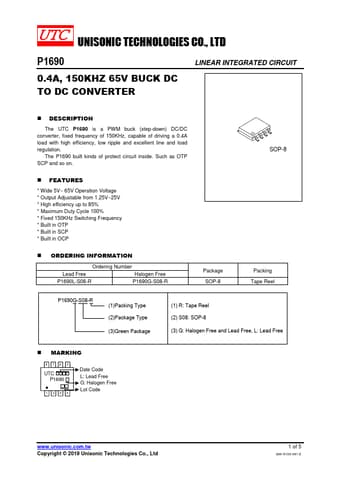

Datasheet preview – P1690
