P1696 - PWM STEP-DOWN DC/DC CONVERTER

Datasheet Summary

Description

The UTC P1696 series is a step-down switching regulator able to provide 2A output current.

The available output voltages are 2.5V 3.3V, 5V, 12V, and an adjustable output version.

Features

  • S.
  • Output load current: 2A.
  • Adjustable version output voltage range, 1.23V ~ 17.5V±4%.
  • Operating voltage can be up to 24V.
  • Low power standby mode.
  • High efficiency.
  • Internal OCP and OTP.

📥 Download Datasheet

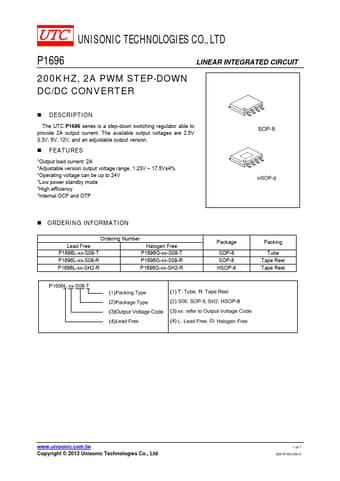

Datasheet preview – P1696
