PA3211

HIGH-SLEW-RATE OP AMP

PA3211 Features

* Single-Supply Operation: +3V ~ +5.5V

* Input / Output Rail-to-Rail

* Low Quiescent Current: 500μA @ 5V

* With Low Input Current

* 5.23V/μs High Slew Rate

* High Output Driving Capacity

* 6.5MHz High Gain-Bandwidth Product

* 70dB High PSRR

* ORDERING INFORMATION

PA3211 General Description

The UTC PA3211 is an input/output rail-to-rail operational amplifier. This device can be operated on either a single supply varying from +3V to +5.5V or dual supply ranging from ±1.5V to ±2.75V. The UTC PA3211 has a perfect AC performance with 6.5MHz bandwidth, 5.23V/μs slew rate. The supply current.

PA3211 Datasheet (148.90 KB)

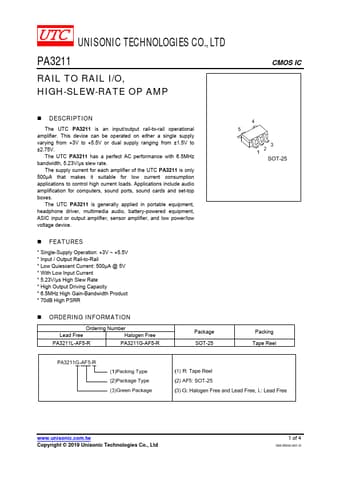

Preview of PA3211 PDF

Datasheet Details

Part number:

PA3211

Manufacturer:

UTC

File Size:

148.90 KB

Description:

High-slew-rate op amp.
