PA3212

2.6W STEREO AUDIO AMPLIFIER

PA3212 Features

* included that the SHDN mode is provided to disable UTC PA3212 for the low current consumption applications and the current consumption can be reduced to typically 150µA.

* FEATURES

* Output power at 0.65% THD+N, VDD=5V(TYP)

* 2.6W/CH (typical) into a 3Ω load

* 1.0W/CH (typical

PA3212 General Description

As operating on a single 5V supply, the UTC PA3212 is capable of delivering 2.6W of output power per channel into 3Ω loads. In Bridge-Tied Load (BTL) mode the UTC PA3212 has less than 1% THD+N, and it also has less than 0.65% THD+N across its specified frequency range when driving 1 W into 8-Ω speak.

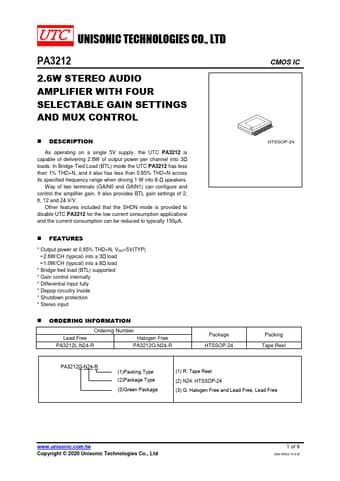

PA3212 Datasheet (402.94 KB)

Preview of PA3212 PDF

Datasheet Details

Part number:

PA3212

Manufacturer:

UTC

File Size:

402.94 KB

Description:

2.6w stereo audio amplifier.
