VERTICAL DEFLECTION OUTPUT CIRCUIT

UTC

T78041 Features

* Low power operation achieved by using integrated charge pump circuit.

* Vertical output circuit.

* Thermal protection circuit.

* Excellent crossover characteristics.

* Supports DC coupling.

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free T78041L-TB7-T

T78041 General Description

The UTC T78041 is a monolithic integrated IC and designed for high-definition TV and CRT displays in systems that use a bus control system signal-processing IC. It is intended to directly drive the deflection coil. Besides, It offers a maximum deflection current of 2.2A peak to peak to suitable for .

T78041 Datasheet (156.28 KB)

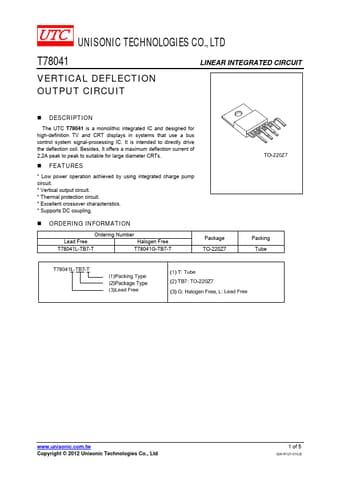

T78041 Datasheet Preview — Preview of T78041 PDF

Datasheet Details

Part number:

T78041

Manufacturer:

UTC

File Size:

156.28 KB

Description:

Vertical deflection output circuit.
