UC3863A - LOW COST POWER-SAVING MODE PWM CONTROLLER

UC3863A Description

UNISONIC TECHNOLOGIES CO., LTD UC3863A LINEAR INTEGRATED CIRCUIT LOW COST POWER-SAVING MODE PWM CONTROLLER FOR FLYBACK CONVERTERS * DESCRI.
The UC3863A is a high performance current mode PWM controller ideally suited for low standby power.

UC3863A Features

* UTC proprietary frequency hopping technology for Improved EMI performance.
* Power-saving mode for high light-load and standby efficiency
* Dynamic peak current limiting for constant output power
* Built-in synchronized slope compensation
* OLP with automatic recovery
* OTP

UC3863A Applications

* as: battery charger, power adaptor, set-top box power supplies, ink jet printers, open-frame SMPS.

📥 Download Datasheet

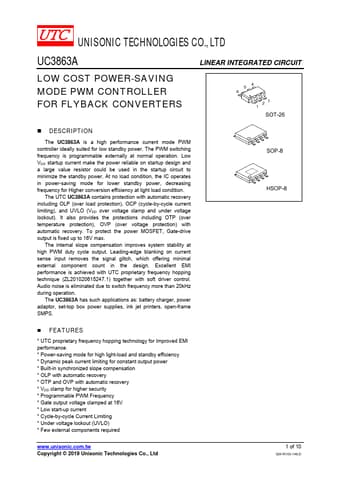

Preview of UC3863A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UC3863A
Manufacturer
UTC
File Size
407.00 KB
Datasheet
UC3863A-UTC.pdf
Description
LOW COST POWER-SAVING MODE PWM CONTROLLER
