UC3816A

LOW COST POWER-SAVING MODE PWM CONTROLLER

UC3816A Features

* Proprietary frequency hopping for Improved EMI performance

* Cycle-by-cycle current limiting

* CCM/Valley Switching Operation

* Fixed switch frequency 60~70kHz

* Dynamic peak current limiting for constant output power

* Built-in synchronized slope compensation

* Gate ou

UC3816A General Description

The UTC UC3816A provides a CCM/valley switching mixed mode operation for better efficiency performance. The operation mode stays at CCM at heavy load, and switch to valley switching at light load. The UTC UC3816A is a high performance current mode PWM controller ideally suited for low standby power..

UC3816A Datasheet (327.42 KB)

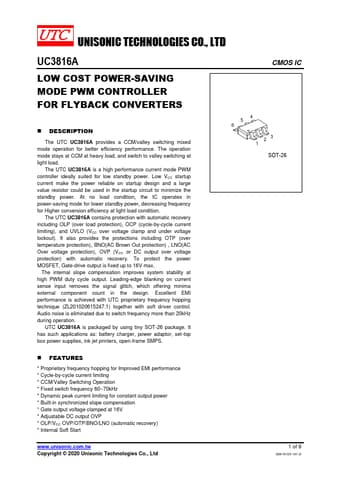

Preview of UC3816A PDF

Datasheet Details

Part number:

UC3816A

Manufacturer:

UTC

File Size:

327.42 KB

Description:

Low cost power-saving mode pwm controller.
