UC3837L

LOW COST POWER-SAVING MODE PWM CONTROLLER

UC3837L Features

* UTC proprietary frequency hopping technology for Improved EMI performance.

* Power-saving mode for high light-load and standby efficiency

* Soft Start

* Dynamic peak current limiting for constant output power

* Built-in synchronized slope compensation

* OLP with automatic

UC3837L General Description

The UTC UC3837L is a high performance current mode PWM controller ideally suited for low standby power. Low VDD startup current make the power reliable on startup design and a large value resistor could be used in the startup circuit to minimize the standby power. At no load condition, the IC operat.

UC3837L Datasheet (326.44 KB)

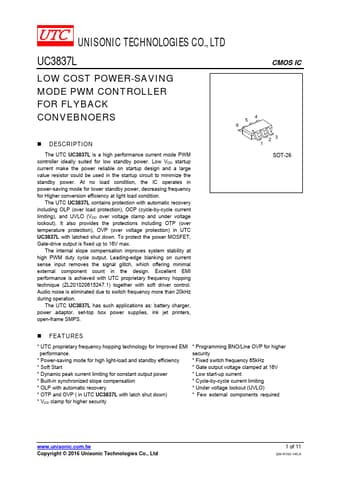

Preview of UC3837L PDF

Datasheet Details

Part number:

UC3837L

Manufacturer:

UTC

File Size:

326.44 KB

Description:

Low cost power-saving mode pwm controller.
