UC3835

High Efficiency Regulator Controller

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Rochester Electronics LLC UC3835N ANALOG CIRCUIT, 1 FUNC, BIPOLAR DigiKey 0 58 units
$5.25

UC3835 Datasheet (438.03 KB)

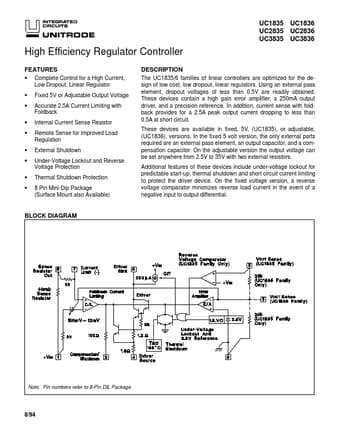

Preview of UC3835 PDF Datasheet

Datasheet Details

Part number:

UC3835

Manufacturer:

Unitrode

File Size:

438.03 KB

Description:

High efficiency regulator controller

UC3835 Features

* Complete Control for a High Current, Low Dropout, Linear Regulator

* Fixed 5V or Adjustable Output Voltage

* Accurate 2.5A Current Limiting with Foldback

* Internal Current Sense Resistor

* Remote Sense for Improved Load Regulation

* External Shutdow

UC3835 General Description

The UC1835/6 families of linear controllers are optimized for the design of low cost, low dropout, linear regulators. Using an external pass element, dropout voltages of less than 0.5V are readily obtained. These devices contain a high gain error amplifier, a 250mA output driver, and a precision ref.
