UC3825

High Speed PWM Controller

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
part Texas Instruments UC3825BDW IC OFFLINE SW MULT TOP 16SOIC DigiKey 120 120 units
$7.68

UC3825 Datasheet (1.41 MB)

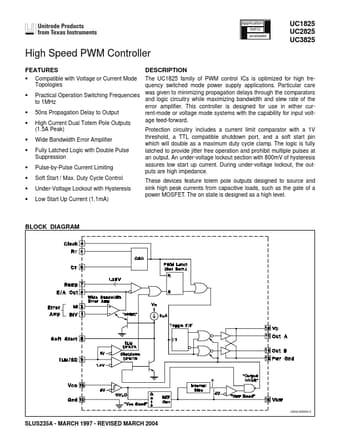

Preview of UC3825 PDF Datasheet

Datasheet Details

Part number:

UC3825

Manufacturer:

Unitrode

File Size:

1.41 MB

Description:

High speed pwm controller

UC3825 Features

* Compatible with Voltage or Current Mode Topologies

* Practical Operation Switching Frequencies to 1MHz

* 50ns Propagation Delay to Output

* High Current Dual Totem Pole Outputs (1.5A Peak)

* Wide Bandwidth Error Amplifier

* Fully Latched Logic with D

UC3825 General Description

The UC1825 family of PWM control ICs is optimized for high frequency switched mode power supply applications. Particular care was given to minimizing propagation delays through the comparators and logic circuitry while maximizing bandwidth and slew rate of the error amplifier. This controller is des.
