UC3833 - Precision Low Dropout Linear Controllers

Product Overview

Unitrode

Datasheet Details

Part number	UC3833
Manufacturer	Unitrode
File Size	2.16 MB
Description	Precision Low Dropout Linear Controllers
Datasheet	UC3833 Datasheet
Note	This datasheet PDF includes multiple part numbers: UC3833, UC3832. Please refer to the document for exact specifications by model.

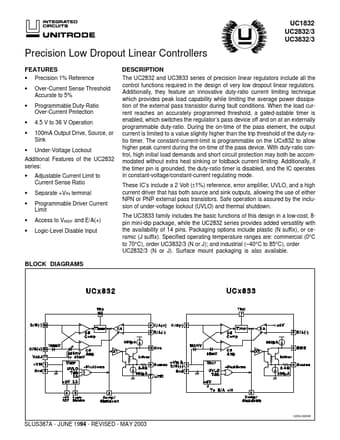

Additional preview pages of the UC3833 datasheet.

Product details

Description

The UC2832 and UC3833 series of precision linear regulators include all the control functions required in the design of very low dropout linear regulators.

Features

Precision 1% Reference.
Over-Current Sense Threshold Accurate to 5%.
Programmable Duty-Ratio Over-Current Protection.
4.5 V to 36 V Operation.
100mA Output Drive, Source, or Sink.
Under-Voltage Lockout Additional Features of the UC2832 series:.
Adjustable Current Limit to Current Sense Ratio.
Separate +VIN terminal.
Programmable Driver Current Limit.
Access to VREF and E/A(+).
Logic-Level Disable.
