UC382-3 Fast LDO Linear Regulator

Note: Tab = Ground The UC382 is a low-dropout-linear regulator providing a quick response to fast load changes. Combined with its precision onboard reference, the UC382 excels at driving GTL and BTL buses. Due to its fast response to load transients, the total capacitance required to decouple the .

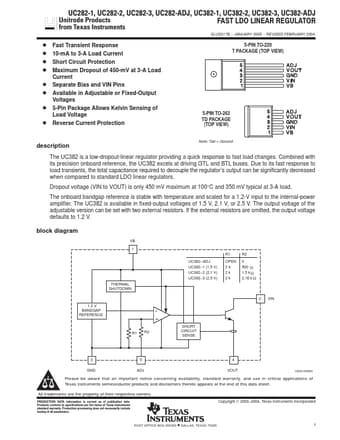

ą UC282Ć1, UC282Ć2, UC282Ć3, UC282ĆADJ, UC382Ć1, UC382Ć2, UC382Ć3, UC382ĆADJ FAST LDO LINEAR REGULATOR D Fast Transient Response D 10-mA to 3-A Load Current D Short Circuit Protection D Maximum Dropout of 450-mV at 3-A Load Current D Separate Bias and VIN Pins D Available in Adjustable or Fixed-Output Voltages D 5-Pin Package Allows Kelvin Sensing of Load Voltage D Reverse Current Protection SLUS317B JANUARY 2000 REVISED FEBRUARY 2004 5-PIN TO-220 T PACKAGE (TOP VIEW) 5-P.

UC382-3 Datasheet (872.44 KB)
