UCD4043B

CMOS QUAD 3-STATE NOR R/S LATCHES

UCD4043B Features

* 3-state outputs with common output ENABLE

* Separate SET and RESET inputs for each latch

* NOR configurations

* 5V, 10Vr and 15V parametric ratings

* Standardized symmetrical output characteristics

* Maximum input current of 1uA at 18V over full package temperature range;

UCD4043B General Description

UTC UCD4043B types are quad cross-coupled 3-state CMOS NOR latches. Each latch has a separate Q output and individual SET and RESET inputs. The Q outputs are controlled by a common ENABLE input. A logic high on the ENABLE input connects the latch states to the Q outputs. A logic low on the ENABLE i.

UCD4043B Datasheet (187.50 KB)

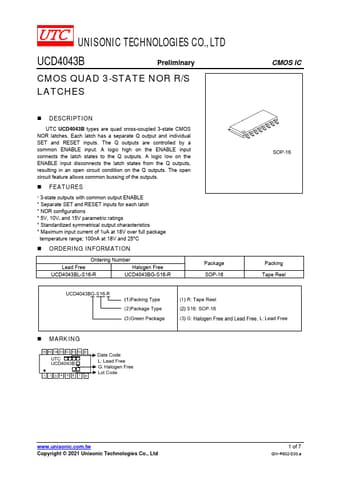

Preview of UCD4043B PDF

Datasheet Details

Part number:

UCD4043B

Manufacturer:

UTC

File Size:

187.50 KB

Description:

Cmos quad 3-state nor r/s latches.
