UCD4015 CMOS Dual 4-Stage Static Shift Register

UCD4015 consists of two identical,independent,4-stage serial-input/parallel-output registers. Each register has independent CLOCK and RESET input as well as a single serial DATA input. ”Q” outputs are available from each of the four stages on both registers. All registers stages are D-type, master-.

UCD4015 Features

* 12MHz (typ.) clock rate at 10V

* Maximum input current of 1μA at 18V

* Fully static operation

* 8 master-slave flip-flops plus input and output buffering

* APPLICATIONS

* General-purpose register

* Serial-input/parallel-output data queueing

* Serial to parall

UCD4015-UnisonicTechnologies.pdf

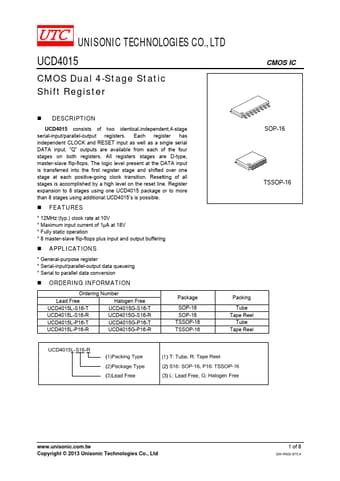

UCD4015 Datasheet Preview — Preview of UCD4015 PDF

Datasheet Details

Part number:

UCD4015

Manufacturer:

Unisonic Technologies

File Size:

219.81 KB

Description:

Cmos dual 4-stage static shift register.
