UIC812

VOLTAGE MONITORS

UIC812 Features

* Precision Monitoring of +3V, +3.3V, and +5V Power-Supply Voltages

* Available in Three Output Configurations Open-Drain RESET Output

* Typical supply current: 5μA

* 140 mS Min Power-On Reset Pulse Width

* Guaranteed Reset Valid to VCC=+1V

* Power Supply Transient Immunity

UIC812 General Description

The UTC UIC812 is microprocessor (μP) supervisory circuits used to monitor the power supplies in μP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components and adjustments when used with +5V, +3.3V, +3.0V- powered circuits. The UTC UIC812 also .

UIC812 Datasheet (310.07 KB)

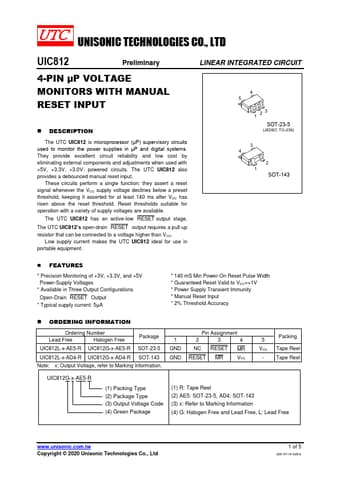

Preview of UIC812 PDF

Datasheet Details

Part number:

UIC812

Manufacturer:

UTC

File Size:

310.07 KB

Description:

Voltage monitors.
