UIC4202

USB 2.0 controller

UIC4202 Features

* Embedded USB2.0 host controller and transceiver, totally compliant with USB1.1/USB2.0 (Hi-speed) specification. Integrates 10/100Mbps Fast Ethernet MAC/PHY. Embedded Ethernet 802.3/3u transceiver, compliant with 100BASE-TX

UIC4202 General Description

The UIC4202 series is a solution made available in low cost package. It is based on a high-performance processor architecture that integrates many system-level functions , such as an 10/100Mbase Fast Ethernet MAC/PHY and controller, USB2.0 PHY and controller, efficient microcontroller, embedded ROM .

UIC4202 Datasheet (210.52 KB)

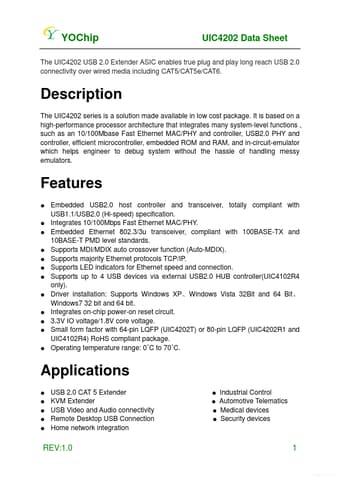

Preview of UIC4202 PDF

Datasheet Details

Part number:

UIC4202

Manufacturer:

YOChip

File Size:

210.52 KB

Description:

Usb 2.0 controller.
YOChip UIC4202 Data Sheet The UIC4202 USB 2.0 Extender ASIC enables true plug and play long reach USB 2.0 connectivity over wired media including CA.
