UL23EA

HIGH ACCURACY LINEAR CONSTANT CURRENT LED DRIVER

UL23EA Features

* Input voltage 220VAC, 110VAC

* Adjustable output current, max 60mA

* Inter-chip current deviation < ±4%

* Application system no EMI problems

* Over temperature Reduced Current

* Supports the adjust brightness in 3 grades

* Supports the adjust color temperature in 3 grad

UL23EA General Description

The UL23EA is a linear constant current IC that supports the adjust brightness or color temperature in 3 grades. The application scheme is simple and the cost is low. In the dimming application of UL23EA, user can change the size of the output current by turn on/off the power switch, that adjust bri.

UL23EA Datasheet (376.50 KB)

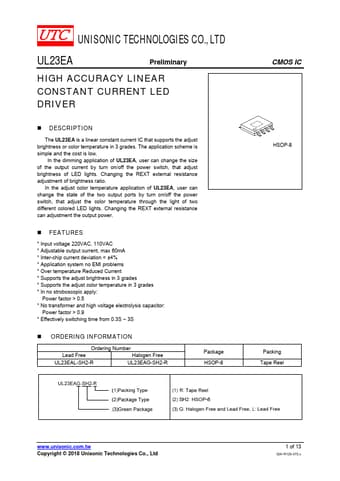

Preview of UL23EA PDF

Datasheet Details

Part number:

UL23EA

Manufacturer:

UTC

File Size:

376.50 KB

Description:

High accuracy linear constant current led driver.
