UL23EB Datasheet, Driver, UTC

UL23EB Features

  • Driver
  • No stroboscopic
  • Input voltage 220VAC,110VAC
  • Adjustable output current, max 60mA
  • Inter-chip current deviation < ±4%
  • Application system n

PDF File Details

Part number:

UL23EB

Manufacturer:

UTC

File Size:

254.22kb

Download:

📄 Datasheet

Description:

High accuracy linear constant current led driver. The UL23EB is a linear constant current IC that supports the adjust brightness or color temperature in 3 grades. The application sche

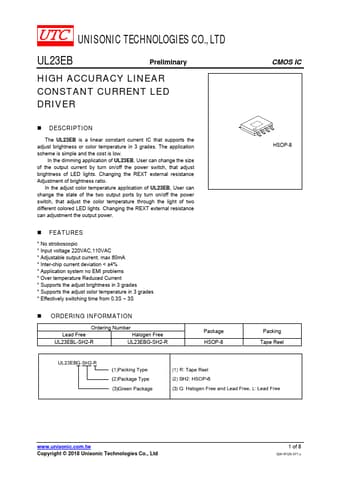

Datasheet Preview: UL23EB 📥 Download PDF (254.22kb)
Page 2 of UL23EB Page 3 of UL23EB

UL23EB Application

  • Applications RREXT1=180Ω,RREXT2=20Ω,0.3S < Switching Period < 3S Open the switch for the 1st time, IOUT=30mA; Open the switch for the 2nd time, IOUT
