UMD9111 BRUSH DC MOTOR DRIVER

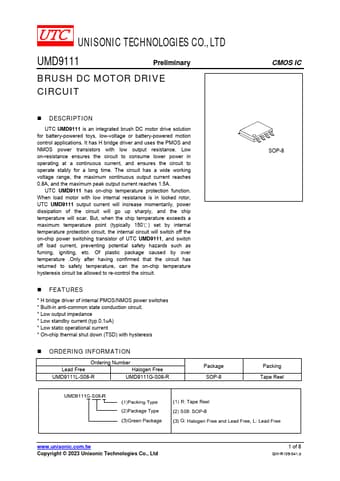

📥 Download Datasheet Datasheet Preview Page 1

Description

UNISONIC TECHNOLOGIES CO., LTD UMD9111 Preliminary BRUSH DC MOTOR DRIVE CIRCUIT * .
UTC UMD9111 is an integrated brush DC motor drive solution for battery-powered toys, low-voltage or battery-powered motion control applications.

📥 Download Datasheet

Preview of UMD9111 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
UMD9111
Manufacturer
UTC
File Size
214.02 KB
Datasheet
UMD9111-UTC.pdf
Description
BRUSH DC MOTOR DRIVER

Features

* H bridge driver of internal PMOS/NMOS power switches
* Built-in anti-common state conduction circuit.
* Low output impedance
* Low standby current (typ.0.1uA)
* Low static operational current
* On-chip thermal shut down (TSD) with hysteresis
* ORDERING INFORMATION Ord

Applications

* It has H bridge driver and uses the PMOS and NMOS power transistors with low output resistance. Low on-resistance ensures the circuit to consume lower power in operating at a continuous current, and ensures the circuit to operate stably for a long time. The circuit has a wide working voltage range,
