UMD9137

LOW-VOLTAGE H-BRIDGE DRIVER

UTC

UMD9137 Features

* PWM Interface, IN1/IN2

* Low-power Sleep Mode With 120-nA Maximum Sleep Current

* nSLEEP pin

* 1.8-A Maximum Drive Current

* Separate Motor and Logic Supply Pins:

* Motor VM: 0~11 V

* Logic VCC: 1.8~7 V

* Protection Features

* VCC Undervoltage L

UMD9137 General Description

The UTC UMD9137 can supply up to 1.8 A of output current. It operates on a motor power supply voltage from 0 to 11 V, and a device power supply voltage of 1.8 V to 7.0 V. The UTC UMD9137 provides an integrated motor driver solution. The device can drive one DC motor or other devices like solenoids. .

UMD9137 Datasheet (370.73 KB)

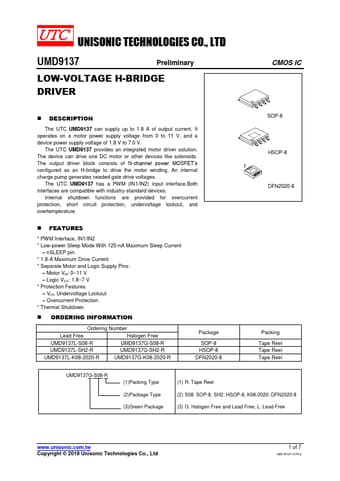

UMD9137 Datasheet Preview — Preview of UMD9137 PDF

Datasheet Details

Part number:

UMD9137

Manufacturer:

UTC

File Size:

370.73 KB

Description:

Low-voltage h-bridge driver.
