UTC1616

6 TONES SIREN/ALARM SOUND GENERATOR

UTC

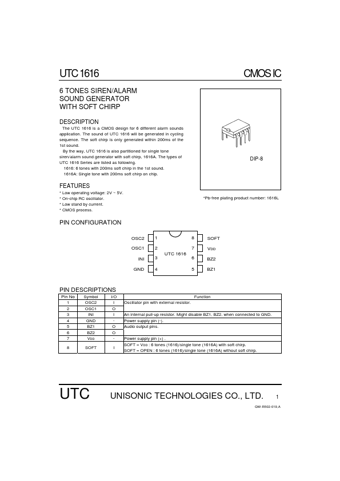

UTC1616 Features

* Low operating voltage: 2V ~ 5V.

* On-chip RC oscillator.

* Low stand by current.

* CMOS process. PIN CONFIGURATION DIP-8

* Pb-free plating product number: 1616L OSC2 OSC1 INI GND 18 27 UTC 1616 36 45 SOFT VDD BZ2 BZ1 PIN DESCRIPTIONS Pin No Symbol I/O 1 OSC2 I 2 OSC1 O

UTC1616 General Description

The UTC 1616 is a CMOS design for 6 different alarm sounds application. The sound of UTC 1616 will be generated in cycling sequence. The soft chirp is only generated within 200ms of the 1st sound. By the way, UTC 1616 is also partitioned for single tone siren/alarm sound generator with soft chirp, 1.

UTC1616 Datasheet (30.82 KB)

UTC1616 Datasheet Preview — Preview of UTC1616 PDF

Datasheet Details

Part number:

UTC1616

Manufacturer:

UTC

File Size:

30.82 KB

Description:

6 tones siren/alarm sound generator.
