UTT100N75H - N-CHANNEL MOSFET

UTC

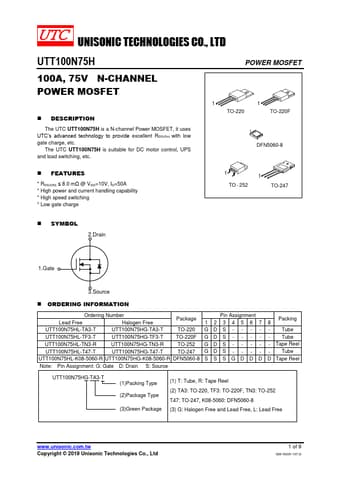

UTT100N75H Datasheet Preview — Preview of UTT100N75H PDF

Datasheet Details

Part number	UTT100N75H
Manufacturer	UTC
File Size	434.92 KB
Description	N-CHANNEL MOSFET
Datasheet	UTT100N75H-UTC.pdf

UTT100N75H Product details

Description

The UTC UTT100N75H is a N-channel Power MOSFET, it uses UTC’s advanced technology to provide excellent RDS(On) with low gate charge, etc.The UTC UTT100N75H is suitable for DC motor control, UPS and load switching, etc.11 TO-220 TO-220F 1 DFN5060-8

Features

RDS(ON) ≤ 8.0 mΩ @ VGS=10V, ID=50A.
High power and current handling capability.
High speed switching.
Low gate charge 11 TO - 252 TO-247.
SYMBOL 2.Drain 1.Gate 3.Source.
