UTT100P03

P-CHANNEL POWER MOSFET

Unisonic Technologies

UTT100P03 Features

* RDS(ON) ≤ 4.3mΩ @ VGS=-10V, ID=-80A RDS(ON) ≤ 7.6mΩ @ VGS=-4.5V, ID=-50A

* High Switching Speed

* SYMBOL 2.Drain Power MOSFET 1.Gate 3.Source

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free UTT100P03L-TA3-T UTT100P03G-TA3-T UTT100P03L-TQ2-T UTT100P03G-TQ2-T

UTT100P03 General Description

The UTC UTT100P03 is a P-channel power MOSFET using UTC’s advanced technology to provide the customers with high switching speed and a minimum on-state resistance. It can also withstand high energy in the avalanche. The UTC UTT100P03 is suitable for low voltage and high speed switching applications .

UTT100P03 Datasheet (442.34 KB)

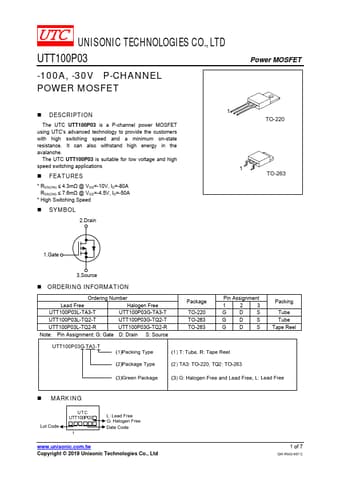

UTT100P03 Datasheet Preview — Preview of UTT100P03 PDF

Datasheet Details

Part number:

UTT100P03

Manufacturer:

Unisonic Technologies

File Size:

442.34 KB

Description:

P-channel power mosfet.
