UM37512S Datasheet - Union Semiconductor

UM37512S - VLDO Linear Regulator

The UM375xx series are VLDO (very low dropout) linear regulators designed for low power portable applications. Typical output noise is only 170μVRMS (UM37512) and maximum dropout is just 200mV at the load current of 100mA.The internal P-channel MOSFET pass transistor requires no base current, allowi.

UM37512S Features

* include high output voltage accuracy, under voltage lockout, stability with ultra low ESR ceramic capacitors as small as 1μF, thermal overload protection and output current limiting. The UM375xx series are available in a low profile SOT23-5 and SOT353 package. Applications z Bluetooth/802.11 Cards

UM37512S-UnionSemiconductor.pdf

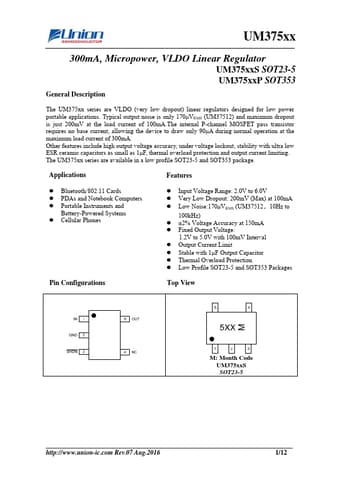

Preview of UM37512S PDF
UM37512S Datasheet Preview Page 2 UM37512S Datasheet Preview Page 3

Datasheet Details

Part number:

UM37512S

Manufacturer:

UniON Semiconductor ↗

File Size:

319.25 KB

Description:

Vldo linear regulator.
