2SK508 N-CHANNEL JFET

2SK508 Description

UNISONIC TECHNOLOGIES CO., LTD 2SK508 HIGH FREQUENCY AMPLIFIER N-CHANNEL SILICON JUNCTION FIELD EFFECT TRANSISTOR N-CHANNEL JFET 3 * .
The UTC 2SK508 is NPN transistor with High forward transfer admittance and low input capacitance.

2SK508 Features

* High forward transfer admittance
* Low input capacitance
* ORDERING INFORMATION Ordering Number 2SK508G-x-AE3-R Note: Pin Assignment: D: Drain S: Source G: Gate Package SOT-23 1 2 SOT-23 (JEDEC TO-236) Pin Assignment 123 DSG Packing Tape Reel
* MARKING www. unisonic. com. tw C

📥 Download Datasheet

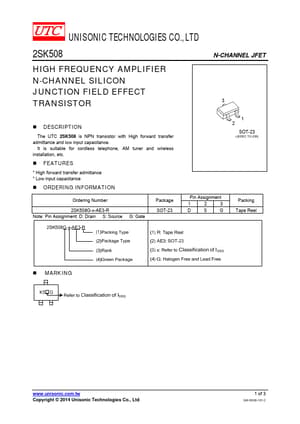

Preview of 2SK508 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
2SK508
Manufacturer
Unisonic Technologies
File Size
164.34 KB
Datasheet
2SK508-UnisonicTechnologies.pdf
Description
N-CHANNEL JFET
