2SK545 JFET

2SK545 Description

UNISONIC TECHNOLOGIES CO., LTD 2SK545 Preliminary IMPEDANCE CONVERTER APPLICATIONS 3 JFET * .
The UTC 2SK545 is an N-channel Junction field effect transistor.

2SK545 Features

* Low Input Capacitance
* Low Gate-Source Leakage Current
* ORDERING INFORMATION Ordering Number 2SK545G-xx-AE3-R Note: Pin Assignment: D: Drain S: Source G: Gate Package SOT-23 1 2 SOT-23 (JEDEC TO-236) Pin Assignment 123 DSG Packing Tape Reel
* MARKING www. unisonic. com. tw Co

2SK545 Applications

* 3 JFET

📥 Download Datasheet

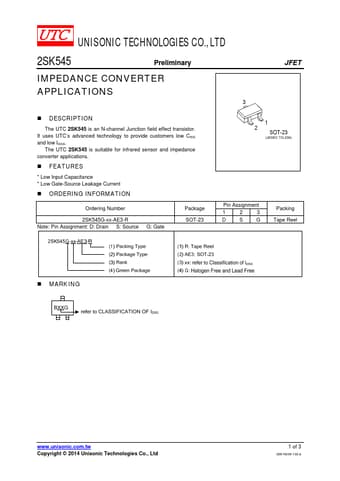

Preview of 2SK545 PDF
datasheet Preview Page 2 datasheet Preview Page 3
