2SK544 - N-Channel MOSFET

Sanyo Semicon Device

📥 Download Datasheet

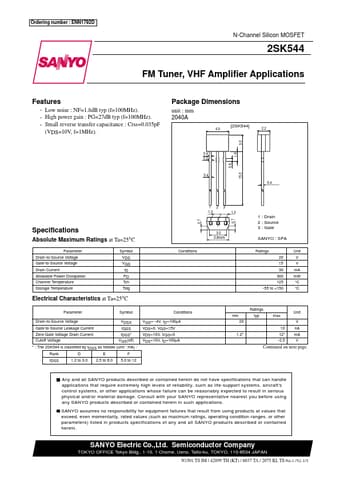

2SK544 Datasheet Preview — Preview of 2SK544 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	2SK544
Manufacturer	Sanyo Semicon Device
File Size	38.55 KB
Description	N-Channel MOSFET
Datasheet	2SK544_SanyoSemiconDevice.pdf

2SK544 Product details

Features

Low noise : NF=1.8dB typ (f=100MHz).
High power gain : PG=27dB typ (f=100MHz).
Small reverse transfer capacitance : Crss=0.035pF (VDS=10V, f=1MHz). Package Dimensions unit : mm 2040A [2SK544] 4.0 2.2 0.6 1.8 15.0 3.0 0.4 0.5 0.4 0.4 Specifications Absolute Maximum Ratings at Ta=25°C Parameter Drain-to-Source Voltage Gate-to-Source Voltage Drain Current Allowable Power Dissipation Channel Temperature Storage Temperature Symbol VDS VGS ID PD Tch Tstg Electrica.
