78L18M, 78L05M 3-TERMINALS 0.2A POSITIVE VOLTAGE REGULATOR

78L18M Description

UNISONIC TECHNOLOGIES CO., LTD 78LXXM LINEAR INTEGRATED CIRCUIT 3-TERMINAL 0.2A POSITIVE VOLTAGE REGULATOR * .
The UTC 78LXXM family is monolithic fixed voltage regulator integrated circuit.

78L18M Features

* Output Current up to 200mA
* Fixed Output Voltage of 5V, 6V, 8V, 9V, 10V, 12V, 15V, 18V and 24V Available
* Thermal Overload Shutdown Protection
* Short Circuit Current Limiting SOP-8 1 TO-92 1 TO-92NL 1 SOT-89 1 SOT-223
* ORDERING INFORMATION Ordering Number Lead Free Hal

78L18M Applications

* that required supply current up to 200mA.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 78L18M, 78L05M. Please refer to the document for exact specifications by model.

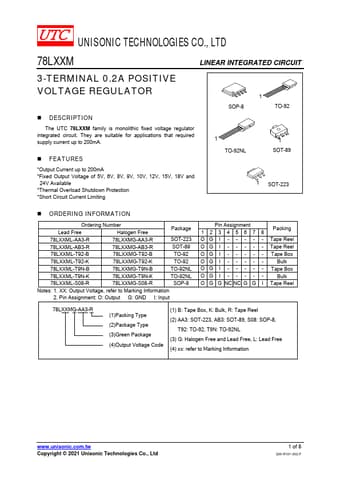

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
78L18M, 78L05M
Manufacturer
Unisonic Technologies
File Size
265.74 KB
Datasheet
78L05M-UnisonicTechnologies.pdf
Description
3-TERMINALS 0.2A POSITIVE VOLTAGE REGULATOR
Note
This datasheet PDF includes multiple part numbers: 78L18M, 78L05M.
Please refer to the document for exact specifications by model.
