BAT721X Datasheet - Unisonic Technologies

SCHOTTKY BARRIER DIODES

BAT721X Features

* Low forward voltage drop

* Ultra high switching speed DIODE

* ORDERING INFORMATION Ordering Number BAT721AG-AE3-R BAT721CG-AE3-R Note: Pin Assignment: A: Anode K: Cathode Package SOT-23 SOT-23 Pin Assignment 12 3 K1 K2 A1A2 A1 A2 K1K2 Packing Tape Reel Tape Reel

* DIODE C

BAT721X General Description

The UTC BAT721X are schottky barrier diodes, it uses UTC’s advanced technology to provide customers with low forward voltage drop and ultra high switching speed, etc. The UTC BAT721X is suitable for applications such as ultra high-speed switching, protection circuits and voltage clamping. * FEAT.

BAT721X Datasheet (137.48 KB)

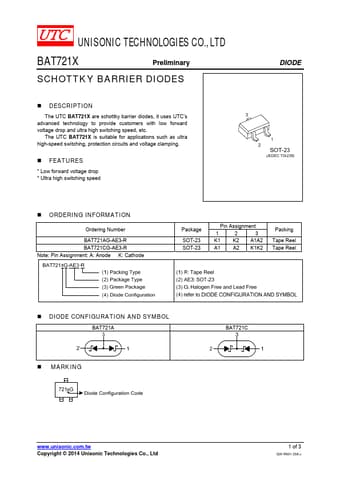

BAT721X Datasheet Preview — Preview of BAT721X PDF

Datasheet Details

Part number:

BAT721X

Manufacturer:

Unisonic Technologies

File Size:

137.48 KB

Description:

Schottky barrier diodes.
