BAT70-05 Silicon Schottky Diodes

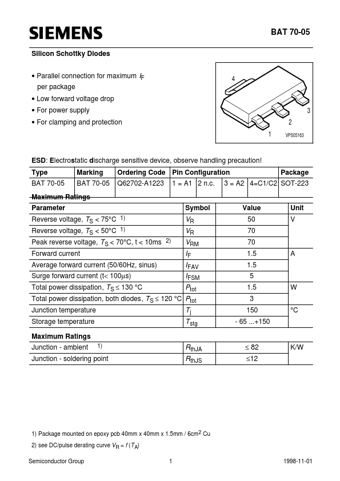

BAT 70-05 Silicon Schottky Diodes Parallel connection for maximum IF per package Low forward voltage drop For power supply For clamping and protection 4 3 2 1 VPS05163 ESD: Electrostatic discharge sensitive device, observe handling precaution! Type BAT 70-05 Marking BAT 70-05 Ordering Code Pin Configuration Q62702-A1223 1 = A1 2 n.c. Package 3 = A2 4=C1/C2 SOT-223 Maximum Ratings Parameter Reverse voltage, TS < 75°C 1) Reverse voltage, TS < 50°C 1.
