L8312 Datasheet - Unisonic Technologies

L8312 DUAL POLARIZATION AND TONE SWITCH CONTROLLER

The UTC L8312 is specially designed integrated circuit for control satellite receiver front-end block switch and provides customers with dual independent channel of two-control signal: polarization and tone switch controller for LNB switch signal path selection. The UTC L8312 is characterized by its.

L8312 Features

* Direct Drive PIN Diode and Multiplexer IC

* High Supply Voltage

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free L8312L-R16-R L8312G-R16-R Package SSOP-16 SSOP-16 Packing Tape Reel L8312G-R16-R (1)Packing Type (2)Package Type (3)Green Package (1) R: Tape Reel (2

L8312-UnisonicTechnologies.pdf

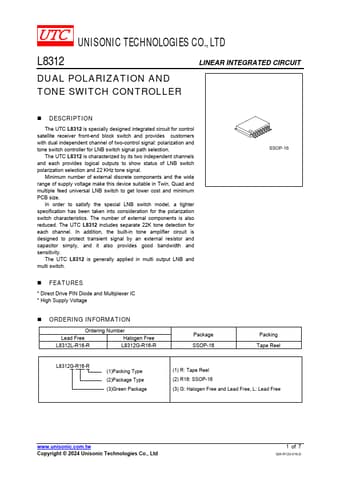

Preview of L8312 PDF
L8312 Datasheet Preview Page 2 L8312 Datasheet Preview Page 3

Datasheet Details

Part number:

L8312

Manufacturer:

Unisonic Technologies

File Size:

211.67 KB

Description:

Dual polarization and tone switch controller.
