MC33272 - LOW INPUT OFFSET VOLTAGE OPERATIONAL AMPLIFIERS

Datasheet Summary

Description

The UTC MC33272 is a Bipolar dual operational amplifier with high performance concepts.

This amplifier exhibits low input voltage noise with high gain bandwidth product and slew rate.

Features

  • S.
  • Single (or dual) supply operation from +3 V to +36V (±1.5V~±18V).
  • Large output voltage swing: +14.1V/-14.6V.
  • Input offset voltage trimmed to 100µV (Typ).
  • Very low input bias current: 300nA.
  • Very low input offset current: 3.0nA.
  • High input resistance: 16MΩ.
  • High slew rate: 10V/µs.
  • High gain bandwidth product: 24MHz @ 100kHz.
  • Low total harmonic distortion: 0.003%.
  • Power supply drain current: 2.15mA per amplifier.
  • Low noise: 18nV / Hz @ 1.0.

📥 Download Datasheet

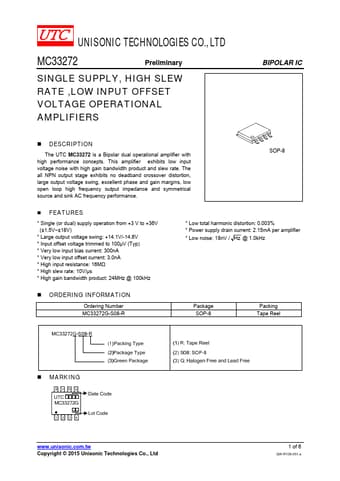

Datasheet preview – MC33272

Datasheet Details

Part number MC33272
Manufacturer Unisonic Technologies
File Size 158.56 KB
Description LOW INPUT OFFSET VOLTAGE OPERATIONAL AMPLIFIERS
Datasheet download datasheet MC33272 Datasheet
Additional preview pages of the MC33272 datasheet.

📁 Similar Datasheet

  • MC33272 - HIGH PERFORMANCE OPERATIONAL AMPLIFIERS (Motorola)
  • MC33272A - HIGH PERFORMANCE OPERATIONAL AMPLIFIERS (Motorola)
  • MC33272A - Low Input Offset Voltage Operational Amplifier (ON Semiconductor)
  • MC33272AD - Low Input Offset Voltage Operational Amplifier (ON Semiconductor)
  • MC33272ADG - Low Input Offset Voltage Operational Amplifier (ON Semiconductor)
  • MC33272ADR2 - Low Input Offset Voltage Operational Amplifier (ON Semiconductor)
  • MC33272ADR2G - Low Input Offset Voltage Operational Amplifier (ON Semiconductor)
  • MC33272AP - Low Input Offset Voltage Operational Amplifier (ON Semiconductor)
  • MC33272APG - Low Input Offset Voltage Operational Amplifier (ON Semiconductor)
  • MC33274 - HIGH PERFORMANCE OPERATIONAL AMPLIFIERS (Motorola)
Other Datasheets by Unisonic Technologies
  • MC33078 - DUAL LOW NOISE OPERATIONAL AMPLIFIERS
  • MC33178 - LOW POWER OPERATIONAL AMPLIFIERS
  • MC34063 - DC to DC Converter Controller
  • MC34118 - VOICE SWITCHED SPEAKER-PHONE CIRCUIT

Full PDF Text Transcription

Click to expand full text
UNISONIC TECHNOLOGIES CO., LTD MC33272 Preliminary SINGLE SUPPLY, HIGH SLEW RATE ,LOW INPUT OFFSET VOLTAGE OPERATIONAL AMPLIFIERS BIPOLAR IC  DESCRIPTION The UTC MC33272 is a Bipolar dual operational amplifier with high performance concepts. This amplifier exhibits low input voltage noise with high gain bandwidth product and slew rate. The all NPN output stage exhibits no deadband crossover distortion, large output voltage swing, excellent phase and gain margins, low open loop high frequency output impedance and symmetrical source and sink AC frequency performance. SOP-8  FEATURES * Single (or dual) supply operation from +3 V to +36V (±1.5V~±18V) * Large output voltage swing: +14.1V/-14.
