U74LVC02A - QUAD 2-INPUT POSITIVE-NOR GATE

Unisonic Technologies

📥 Download Datasheet

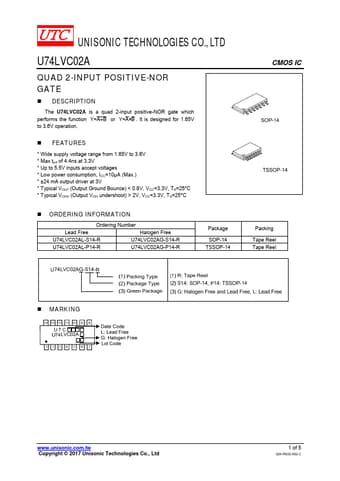

U74LVC02A Datasheet Preview — Preview of U74LVC02A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	U74LVC02A
Manufacturer	Unisonic Technologies
File Size	193.82 KB
Description	QUAD 2-INPUT POSITIVE-NOR GATE
Datasheet	U74LVC02A-UnisonicTechnologies.pdf

U74LVC02A Product details

Description

The U74LVC02A is a quad 2-input positive-NOR gate which performs the function Y=A+B or Y=Α×Β .

Features

br>.
Wide supply voltage range from 1.65V to 3.6V.
Max tpd of 4.4ns at 3.3V.
Up to 5.5V inputs accept voltages.
Low power consumption, ICC=10μA (Max. ).
±24 mA output driver at 3V.
Typical VOLP (Output Ground Bounce) < 0.8V, VCC=3.3V, TA=25°C.
Typical VOHV (Output VOH undershoot) > 2V, VCC=3.3V, TA=25°C.
