UCD4021B

CMOS 8-STAGE STATIC SHIFT REGISTERS

UCD4021B Features

* Up to 20V operation voltage

* 12MHz (Typ.) clock rate at 10V

* Maximum input current of 1μA at 18V

* Fully static operation

* 8 master-slave flip-flops plus output buffering and control gating

* APPLICATIONS

* General-purpose register

* Parallel input/serial output

UCD4021B General Description

The UCD4021B is a 8-stage synchronous parallel or serial input/serial output registers having common CLOCK and PARALLEL/SERIAL CONTROL inputs, a SERIAL data input, and individual parallel inputs to each register stage. Each register is a D-type, master-slave flip-flop. Q6, Q7, and Q8 are outputs. In.

UCD4021B Datasheet (265.55 KB)

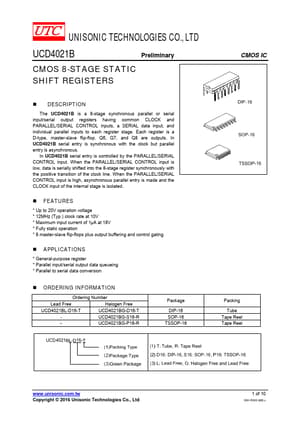

Preview of UCD4021B PDF
