US2651

HIGH PRECISION LOW COST MCM POWER SWITCH

US2651 Features

* Power on soft-start

* Load compensation

* Built-in error amplifier

* Oscillator of fixed frequency with frequency-reduction control

* Frequency shuffling for EMI improvement

* Built-in Leading Edge Blanking (LEB)

* Cycle-by-Cycle current limiting

* Over loading pro

US2651 General Description

The UTC US2651 is a high performance, high precision and low cost PWM Power switch for non-isolated buck application. It combines a dedicated current mode PWM controller and error amplifier for low component count. UTC US2651 use UTC proprietary frequency shuffling technique for EMI performance. And.

US2651 Datasheet (357.89 KB)

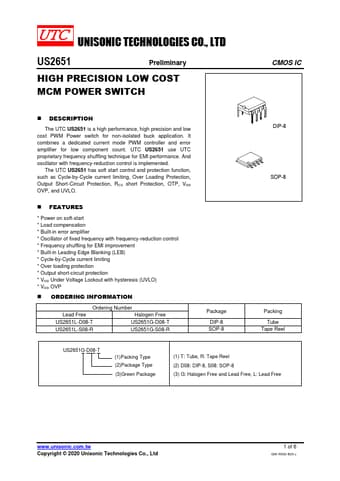

Preview of US2651 PDF

Datasheet Details

Part number:

US2651

Manufacturer:

Unisonic Technologies

File Size:

357.89 KB

Description:

High precision low cost mcm power switch.
