VGA7S019 Datasheet - Unisonic Technologies

7-CHANNEL INTEGRATED ESD SOLUTION

VGA7S019 Features

* 7 Channels of ESD protection for all VGA port connector pins meeting IEC-61000-4-2 Level 4 ESD requirements (±8kV contact discharge)

* Integrated impedance matching resistors on sync lines:

* VGA7S019-15: 15Ω Termination

* VGA7S019-55: 55Ω Termination

* VGA7S019-65: 65

VGA7S019 General Description

The UTC VGA7S019 is an ESD solution for the VGA or DVI-I port connector. This device integrates ESD protection for all signals, level shifting for the DDC signals and buffering for the SYNC signals. ESD protection for the VIDEO, DDC and SYNC lines is implemented with low-capacitance current steering.

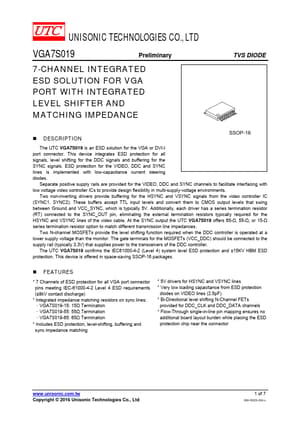

VGA7S019 Datasheet (175.45 KB)

VGA7S019 Datasheet Preview — Preview of VGA7S019 PDF

Datasheet Details

Part number:

VGA7S019

Manufacturer:

Unisonic Technologies

File Size:

175.45 KB

Description:

7-channel integrated esd solution.
UNISONIC TECHNOLOGIES CO., LTD VGA7S019 Preliminary 7-CHANNEL INTEGRATED ESD SOLUTION FOR VGA PORT WITH INTEGRATED LEVEL SHIFTER AND MATCHING IMPED.
